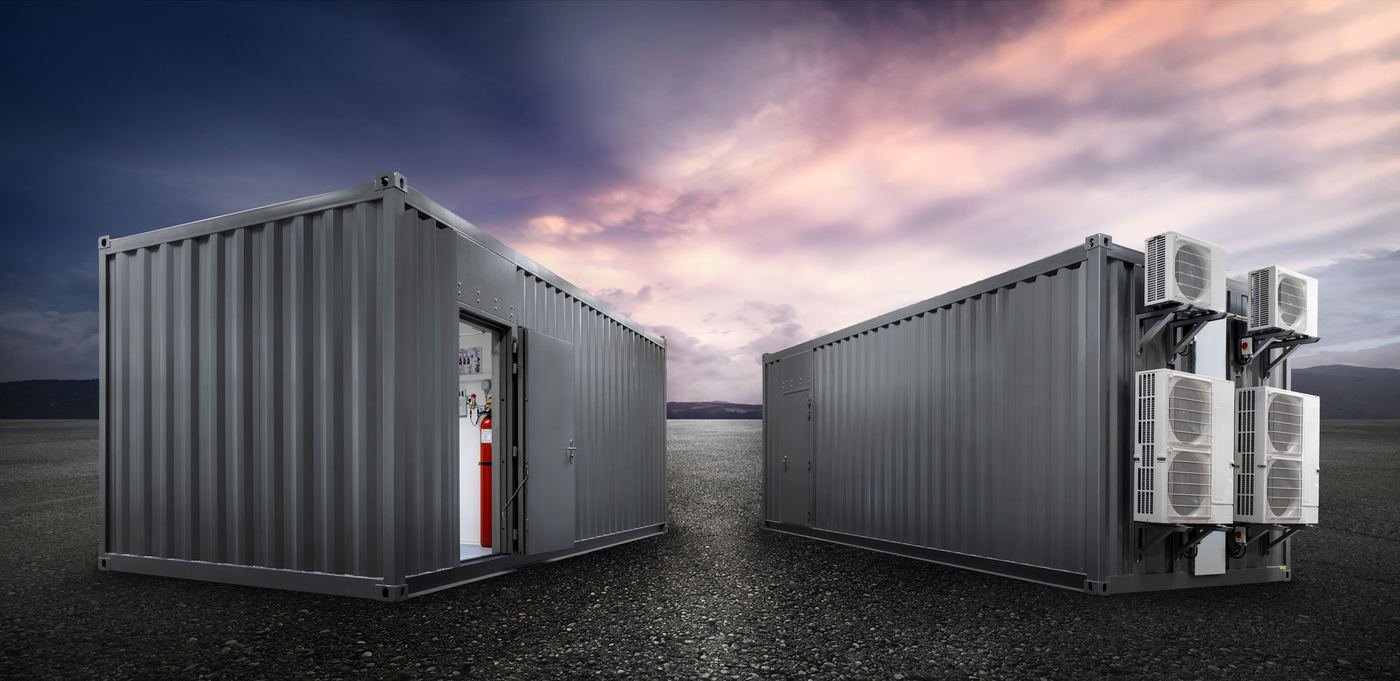

Two Powervault enclosures at dusk — one open showing internal fire suppression cylinder and electrical panel, the other fitted with external HVAC condenser units.
A Pai Kane Group Company

Specialised enclosures and E-houses. Steel to finished enclosure, under one roof.

BESS · data centre gensets · diesel & gas gensets · compact substations. Built on robotic welding, an ISO 12944 C5M paint system and precision pneumatic jigs.

Send an enquiry See the plant
1989
Group founded
86+
Countries — Group commercial presence
4
Enclosure families

Robotic & semi-automated welding

Repeatable structural welds, with procedures engineered to EN 1090 / ISO 3834.

C5M marine-grade paint system

ISO 12944 C5M high-corrosivity coating system, applied and cured in a dedicated booth.

BESS Data centre gensets Diesel & gas gensets Compact substations
One envelope, three disciplines — steel shell, structural weldment and electrical provisions, under one roof.
Skip the assembly animation
Steel to finished enclosure

Watch an enclosure come together.

  1. 00 / 06

    Steel intake

    Every enclosure starts as plate and section steel, drawn in to one plant.

  2. 01 / 06

    Base frame

    Bottom rails and cross-members are cut and fixed in precision jigs first, so the footprint starts square.

  3. 02 / 06

    Corner posts and castings

    ISO-format posts and corner castings lock the footprint. Engineered to ISO 1496-1; type approval in progress.

  4. 03 / 06

    Corrugated shell

    Corrugated walls add stiffness without added weight, welded on procedures engineered to EN 1090 / ISO 3834.

  5. 04 / 06

    Roof and door end

    Roof panels, door leaves, hinges and locking bars come off jigs built to Powervault drawings, so they fit first time.

  6. 05 / 06

    Fit-out

    Cooling units, cable gland plate, fire suppression and electrical provisions go in under the same roof.

  7. 06 / 06

    C5M finish

    ISO 12944 C5M coating system, applied and cured in a dedicated booth. Finished enclosure, ready for the yard.

    Send an enquiry
What we build

Four enclosure families, engineered as one discipline.

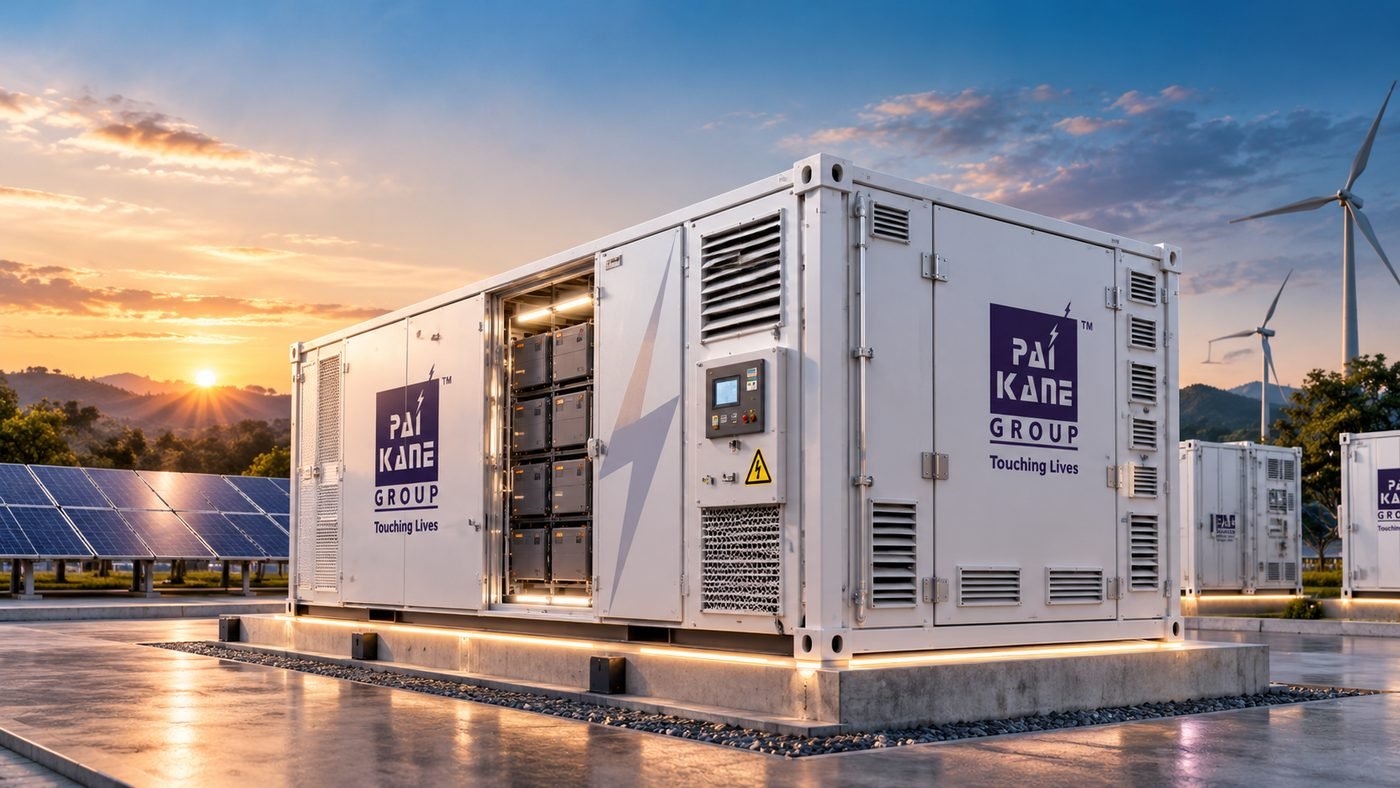

Steel battery energy storage enclosure with an open battery rack bay on a concrete plinth, beside solar panels and wind turbines at sunset.

BESS enclosures

Battery energy storage enclosures built to survive thermal, fire and duty-cycle demands over a multi-year field life.

View enclosure →

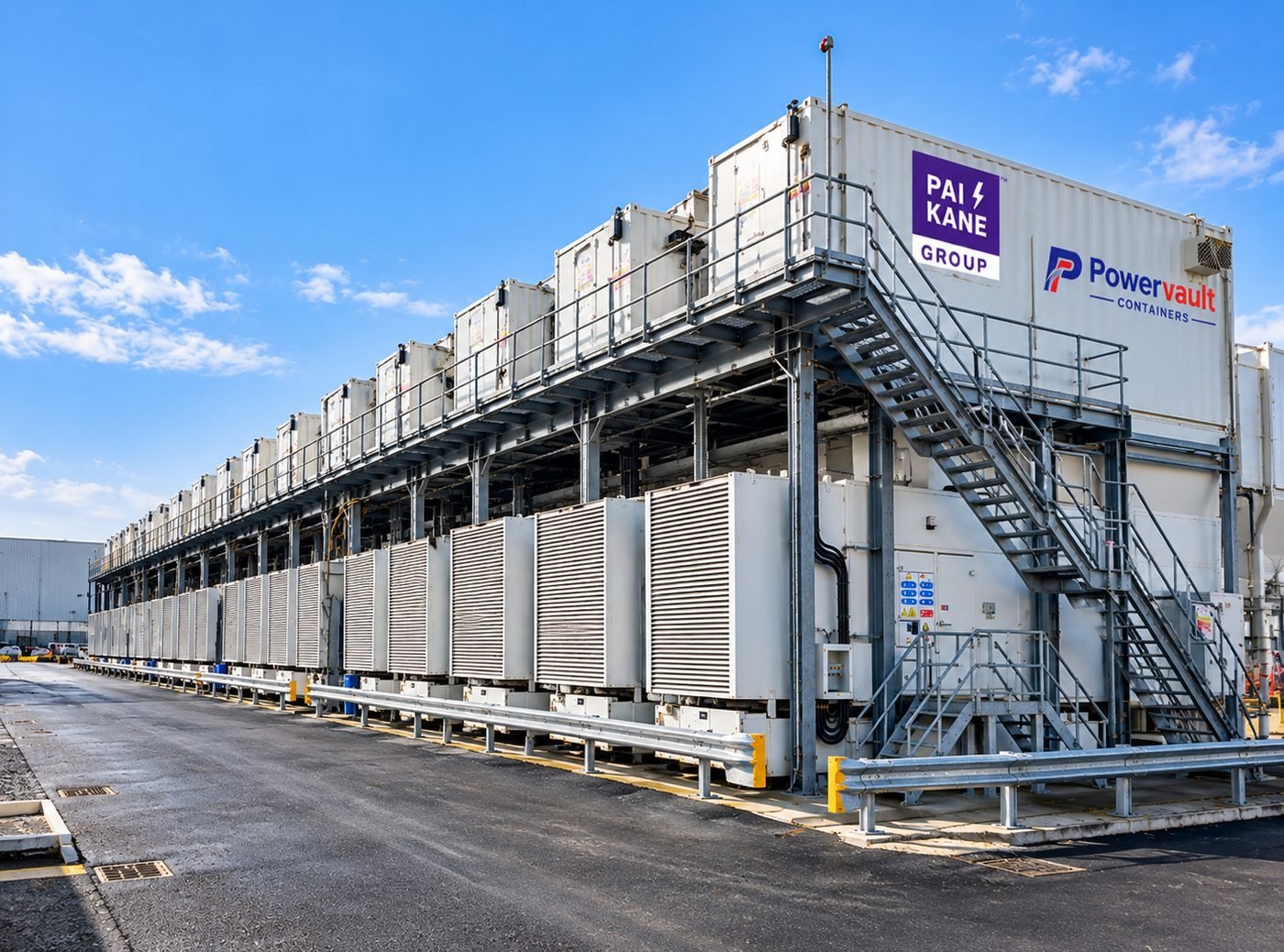

Rows of Powervault genset enclosures stacked on a steel gantry with access stairs and guard rails, in a data centre power yard.

Data centre genset enclosures

Genset enclosures engineered against the acoustic and availability specification set by the facility.

View enclosure →

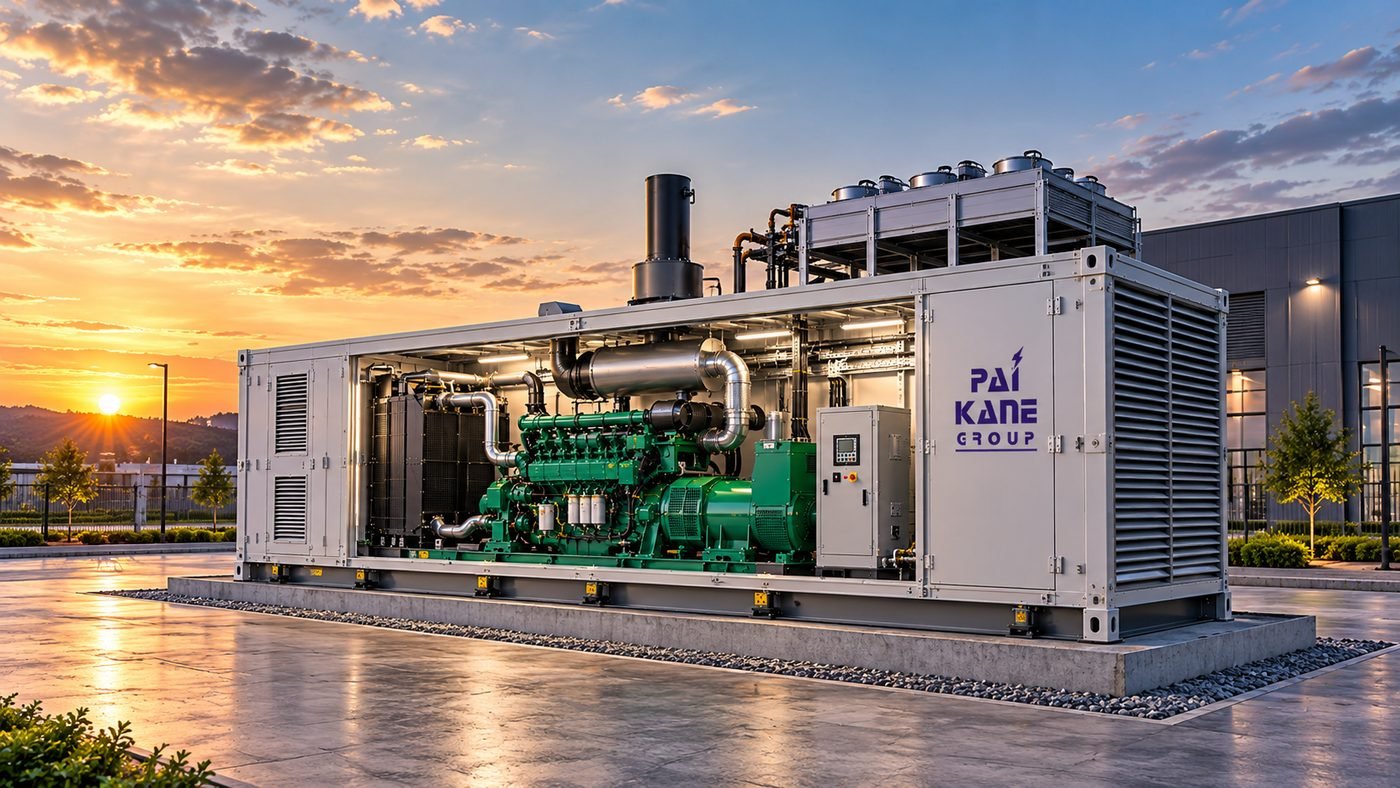

Cutaway view of a steel generator enclosure showing the engine, alternator, exhaust silencer and control panel on a concrete pad.

Diesel & gas genset enclosures

Acoustic genset enclosures for standby and prime power, sized and finished to the site they will stand in.

View enclosure →

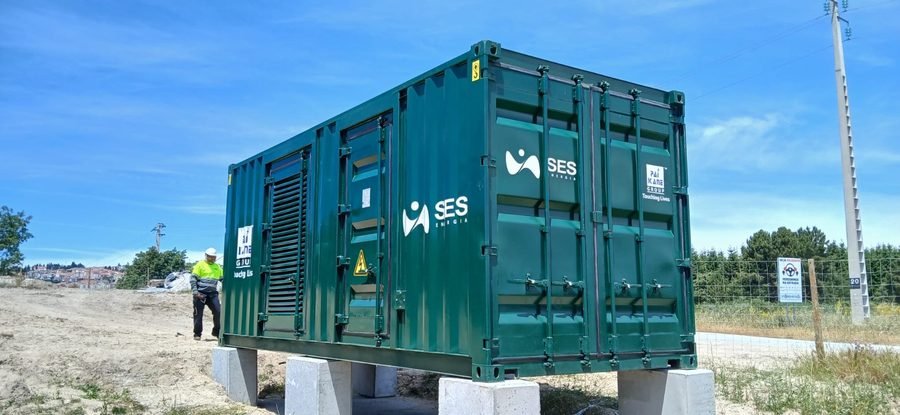

Compact substation enclosure installed on site on concrete piers, field-deployed and commissioned.

Compact substation & E-house enclosures

Switchgear and transformer enclosures built for utility and industrial deployment, documented for empanelment.

View enclosure →
Why the process matters

Four things we control in-house.

01

Steel-to-finished, in-house

Full process control and traceability from incoming steel to painted, tested enclosure. No sub-contracted quality gaps, and one point of accountability for schedule.

02

Robotic & semi-automated welding

Repeatable structural welds, with procedures engineered to EN 1090 / ISO 3834 — not job-shop hand welding. Weld quality is one of the leading causes of field failure in steel enclosures.

03

C5M marine-grade paint system

ISO 12944 C5M high-corrosivity coating system, applied and cured in a dedicated booth. Coastal and industrial sites quickly expose an under-specified coating.

04

Precision jigs & fixtures

Customisable pneumatic jigs, designed to Powervault drawings, for dimensional accuracy and interchangeability. Doors, glands and equipment fit first time on site, and replacement parts are interchangeable.

How we're built to work

One envelope, three disciplines.

Every Powervault enclosure is an ISO-format steel shell, a structural weldment and an electrical enclosure at the same time. These are usually supplied by three different types of vendor. We are set up for all three in the same building.

  • Steel shell Corrosion-rated steel envelope, corrugated for structural stiffness and transport handling.
  • Structural weldment Robotic and semi-automated welding to a repeatable structural standard.
  • Electrical enclosure Provisions for switchgear, cable management and internal fit-out, engineered to the governing electrical code.

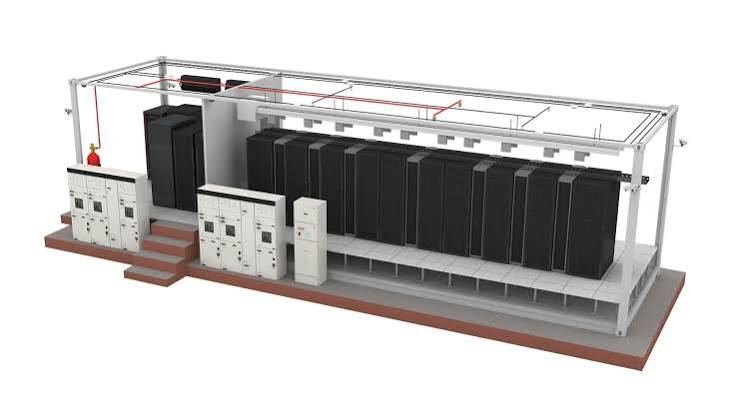

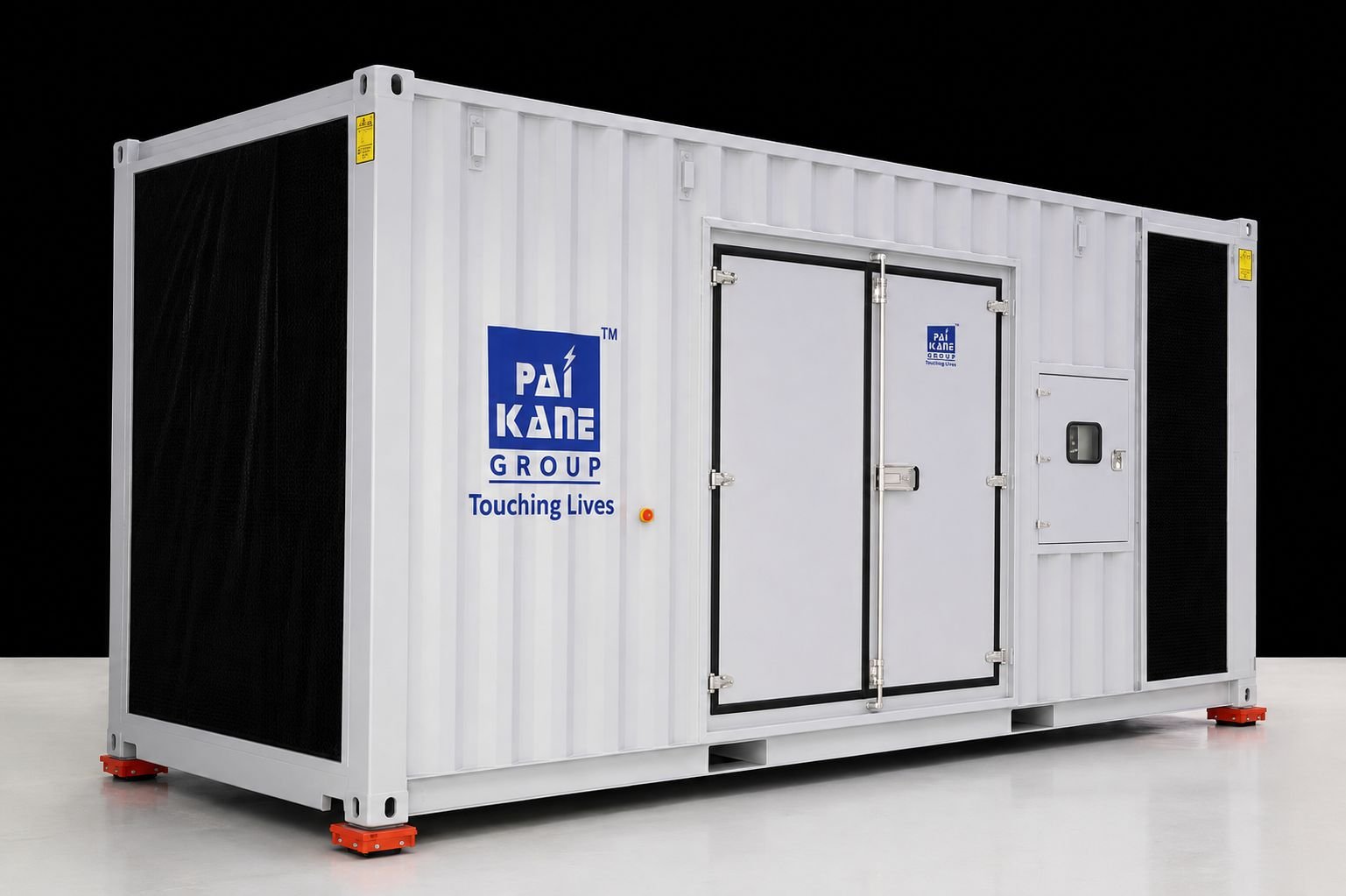

Finished corrugated steel enclosure with double doors, standing on levelling feet. Line render of a steel enclosure's bare structural frame with switchgear bay inside. Cutaway render of an enclosure fitted with switchgear and electrical cabinets inside.
Manufacturing

The plant — our strongest asset.

A dedicated plant being built to take an enclosure from steel to finished product under one roof, with robotic welding, a C5M paint booth and precision pneumatic jigs.

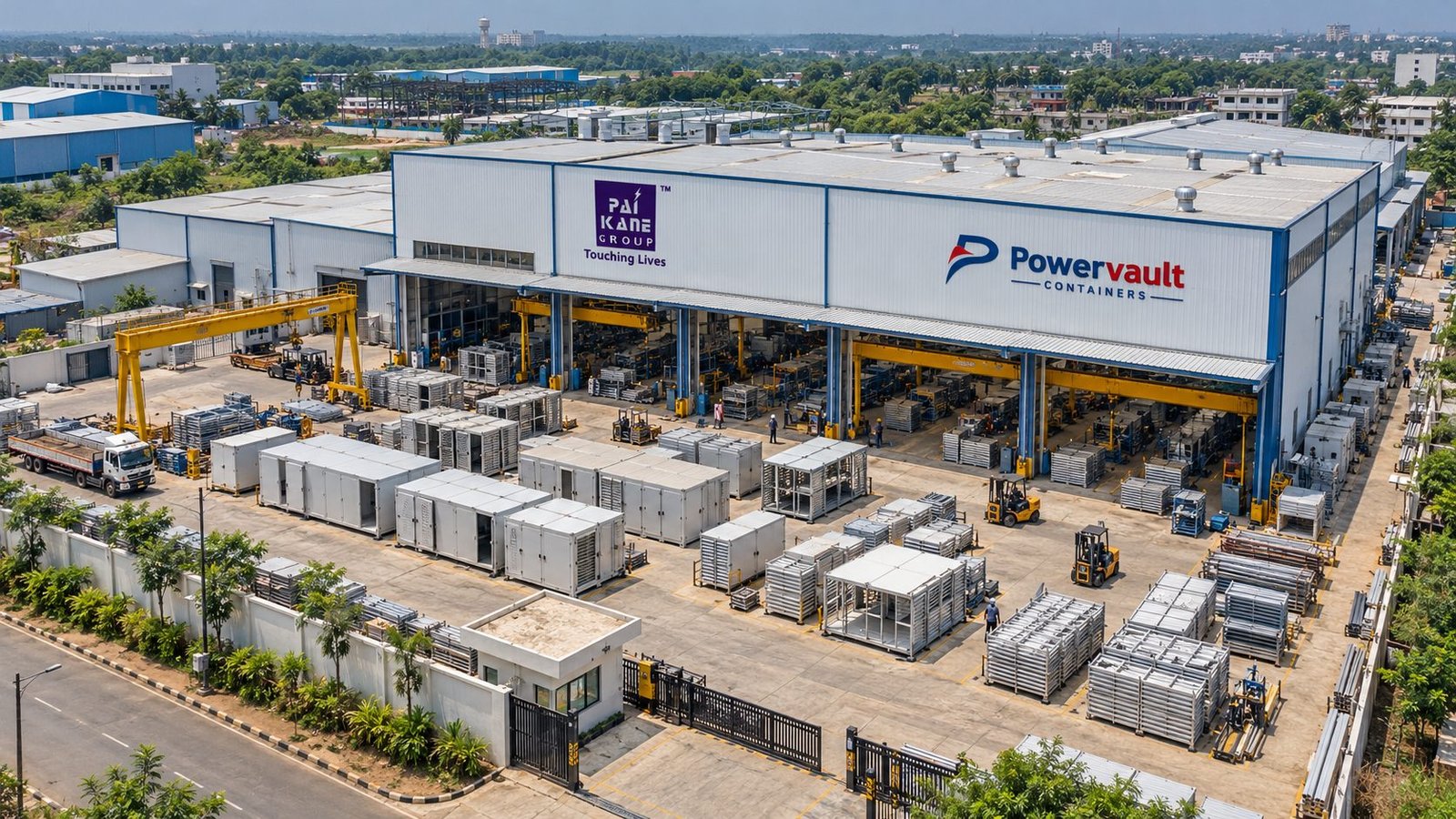

Aerial view of the Powervault Containers plant: a large fabrication hall with gantry cranes, forklifts and rows of steel enclosures and frames in the yard.
01Steel intake
02Cut
03Blast + primer
04Press
05Sub-assembly
06Fabrication
07Blast
08Paint & bake
09Fit-out
10Test & yard
~10 acres
Site area
~16,000 m²
Factory floor area
4
Production bays

Built to scale. The plant is laid out for specialised enclosures and E-houses, with floor space reserved for added capacity as demand grows.

See the full production flow →

Standards & quality

Engineered to. Not implied.

What we engineer to, and where each item genuinely stands today.

StandardScopeStatus
ISO 668 / ISO 1496Dimensions, ratings and structural testing (ISO Series 1 format)Engineered to — ISO 1496-1 type approval in progress
EN 1090 / ISO 3834Structural steelwork and welding qualityEngineered to — certification planned
ISO 5817 / ISO 9606Weld quality levels and welder qualificationEngineered to — welder qualification to ISO 9606 at plant start-up
ISO 12944 C5MHigh-corrosivity marine coating systemEngineered to — coating system per paint supplier's C5M specification
ISO 1461Hot-dip galvanizingSpecified where required — by approved galvanizer
IS 800 / IS 2062Indian structural steel design and materialEngineered to
IEC 61439Low-voltage switchgear and controlgear assemblies — enclosure provisions, where housedEngineered to
IEC 62619Safety of secondary lithium cells and batteriesCustomer scope — cell and battery-system certification sits with the integrator
IEC 62933Electrical energy storage systemsDesign reference — enclosure requirements addressed; system compliance with integrator
UL 9540 / NFPA 855ESS safety and installation contextDesign reference — system listing with integrator
IEC 62271-202High-voltage / low-voltage prefabricated substationsEngineered to — type test per customer requirement

Certification scope is confirmed per customer requirement at order stage.

Full standards & quality page →

Group backing

Powervault Containers Private Limited is a Pai Kane Group company. The Group is a power-engineering house operating since 1989, with manufacturing in India and the UK and a commercial presence in over 86 countries.

The Group's existing business covers genset and acoustic enclosures, transformers, switchboards and integrated power solutions, supplying OEMs across the industry. More on Powervault and the Group →

Get a technical response

Send us a specification and we will come back with a technical response.

Application, sizing, coating grade and governing standard — the more you give us, the faster we can price it.
